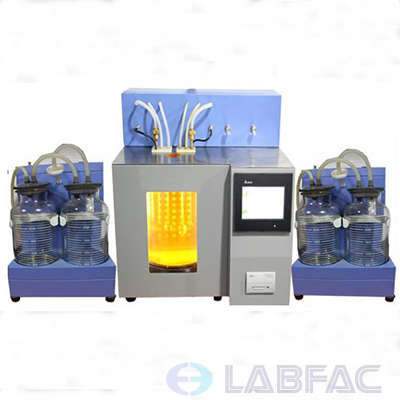

Automatic Kinematic Viscometer

Scope

Automatic viscosity measuring instrument used by GB / T265-88, GB / T11137-89, ISO3104, ASTMD445, ASTM D446 requirements, determination of liquid petroleum products (Newton liquids) kinematic viscosity, in units of m2 / s, usually Use mm2 / s in practice. Dynamic viscosity of the liquid at a constant temperature measured kinematic viscosity and density of the product at the same temperature of the liquid. Automatic Viscosity measurement of transparent and opaque liquids, including crude oil, light and heavy fuel oil, lubricating oil additives, oil kinematic viscosity.

Features

1, Large-screen LCD, while the determination of kinematic viscosity values of the two samples.

2, Automatic detection, automatic extraction experiment, automatic detection, automatic calculation, automatic storage.

3, The instrument is equipped with automatic washing module, viscometers automatic cleaning, automatic drying.

4, Using FLD special infrared detection system, automatically determine the time through the liquid, high-precision test results.

5, User-friendly design, the software allows users to set personalized programs may be required to set a detection error indicator based on user, cleaning and testing indicators index

6, The cooling device can be configured according to user needs.

7, The detection unit as a separate standard configuration, ready to install and uninstall detection unit, to facilitate the detection, cleaning, storage and future upgrades.

Technical Parameters

1, Display: TFT true color large-screen display

2, The detection system: FLD special detection equipment, high temperature resistance, corrosion resistance, high stability

3, Chip processing: import XECOM processing chip United States 4, detection method: infrared detection, automatic detection

5. Cleaning method: program automatic cleaning, automatic drying capillary 6 Power supply: AC 220V ± 10%, 50Hz

7, Temperature control point: 40 ℃, 50 ℃, 80 ℃, 100 ℃, temperature control accuracy: ± 0.1 ℃

8. Print: Automatically print a report

9, The heating medium: Recommended use 10 # transformer oil
