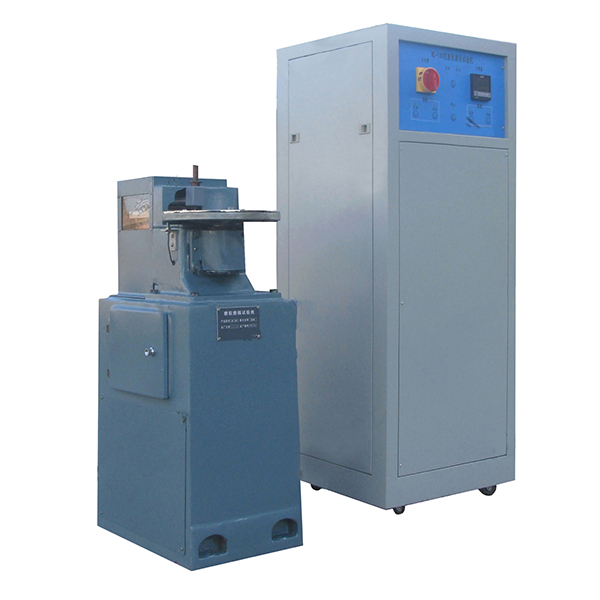

Abrasive wear tester

Model: ML-100
Product description: Abrasive wear tester
INQUIRY

Application

The tester is a dry fixed abrasive wear tester. It is mainly used for the wear resistance test of metal materials in the case of solids such as sand, ore, mud and sand. Through experiments, the wear resistance properties of various metal materials are obtained, and the wear mechanism of abrasive particles can be studied. So that the mining machinery, construction machinery, transportation machinery, agricultural machinery and other design, production and scientific research departments choose reasonable metal materials and processes.

Technical parameters

1. Type: pin disc type, rotary abrasive wear tester

2. Maximum load: 100 Newtons

3. Charge range: 2-100 Newtons, 1 Newton per stage

4. Rotating speed of disc: 60, 120 rpm

5. Sample feed rate: 1, 2, 3, 4 mm / rev

6. Sample diameter: 2, 3, 4 mm

7. Two-speed motor:

(1) 380V 50 cycles / second

(2) Speed 690, 1380 rpm

(3) Power 0.45, 0.84 kW

8. Overall dimensions: 560mm * 540mm * 1015mm
