2 Heads SMT P&P Machine

2 Heads SMT P&P Machine

  • Model: SUNY-D2V-25S
  • Product description: 2 Heads SMT P&P Machine
  • INQUIRY

Product Feature:

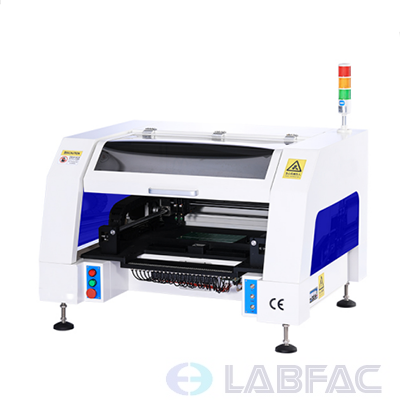

SUNY-D2V-25S is the classic of desktop dual-head SMT pick and placement machine. High precision, more reasonable mechanical design, easy operation, stable running, adapting air-operated feeder, automatic vision system, automatic detection materials shortage. Suitable for mounting most of the SMD components, such as 0402 0603 0805 1206 1210 3528 5050 SOP QFN, etc.

l Drawer type computer and driver integrated, could pull out lightly, convenient for later maintenance.

l Disassembled chassis, easy to handling.

l HD industrial camera, precisely identify 0402, 15*15mm and other electronic chips.

l Intelligent remounting design, when pick materials failed, software will instruct to continue mounting no-stop, record and unify remounting. It could improve the mounting efficiency.

l Component auxiliary box design, make components programming and position revising more precisely.

l Software is easy to understand and use, free upgrade permanently.

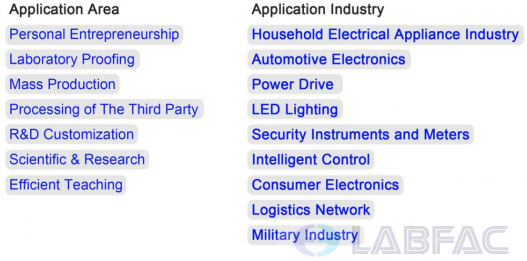

Application For:

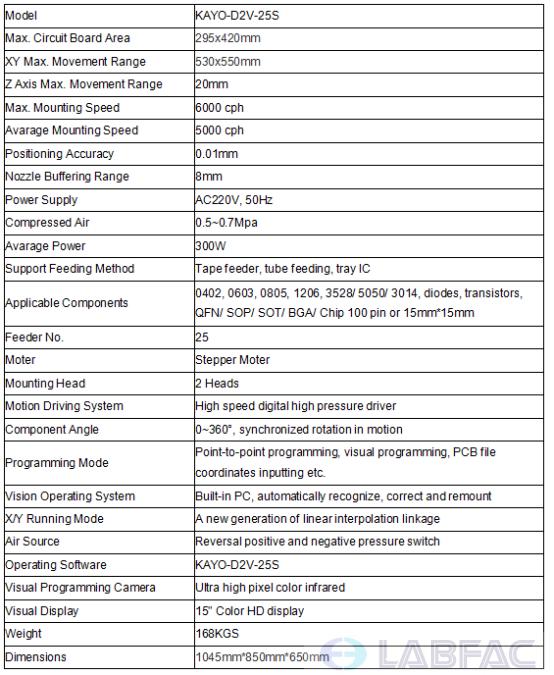

Product Parameters:


Recommended Production Line:

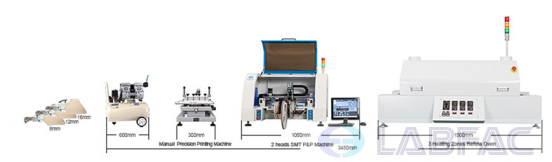

Program 1:

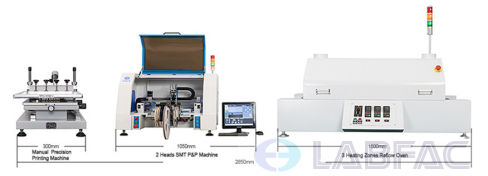

Program 2:

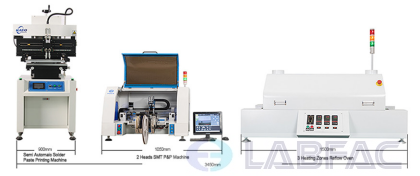

Program 3:
