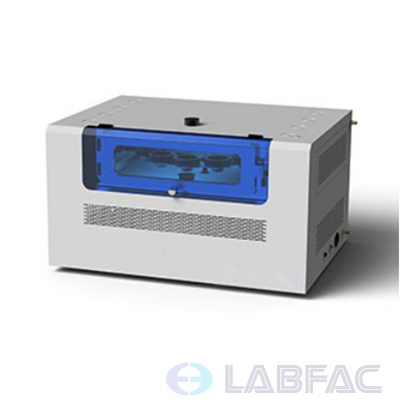

Vapor Permeability Tester

  • Vapor Permeability Tester
Vapor Permeability Tester

Vapor Permeability Tester

  • Model: VPT-8-030D
  • Independent data of each cavity
  • Pure semiconductor temperature control
  • Strict speed control
  • Product description: Vapor Permeability Tester
  • INQUIRY

Product Features:

For plastic films, laminated films, fabrics, leather, solar cells, building materials and other materials, as well as the vapor permeability test of tableware, health, medical, textile and leather, and other fields of materials.

Determination of vapor transmission rate, quality of control materials, and provide accurate technical parameters of product quality inspection and control. Films, bottles and bags can be measurable.


Working Principle:

Weigh method. Control test environment temperature, humidity, wind speed, fixed humidity difference form on two sides of samples. vapor goes through the sample into the dry side. Lift permeable cup using air cylinder mechanism, weigh permeable cup in even space. Measure the weight of sample cup according to decreased amount of time, and analyze the vapor permeability and vapor permeability coefficient.



Application Characteristics:

Automatic test: just set the temperature, humidity, and warm-up time and stop conditions, after that, test begins automatically; automatically determine the end of the trial and save the test results;

Power-off saving function; full monitoring and automatic recording; sampling rate is adjustable;

The entire testing process can reproduce; powerful graphics curve function, easy comparative testing, and analysis;

Host software has a common database system, and data can be exported, for data storage, query, print, and other functions. Through the analysis of historical data, it’s easy to grasp the product historical dynamic.



Features:

1. Independent data of each cavity

2. The world's top high-precision sensors (MT / Mettle - Toledo), test data is accurate, test time is short

3. Pure semiconductor temperature control, no electric wire, automatic temperature control in cooling heating, temperature control is more accurate; parallel work, higher reliability;

4. The patented technology of constant temperature balance: balance temperature, eliminate the interference of environmental change, weighing is more accurate;

5. Desiccant Free Replacement: automatic regeneration of the drying gas occurs, the desiccant needs not to be replaced;

6. Strict speed control: double spiral loop wind, wind speed measurement, in full compliance with standards, inside testing temperature field and humidity field are more uniform;

7. Before sample weighing, stop the wind, gas, clear the balance to ensure accurate weighing

8. Sample disk patented lifting and rotating mechanism, sample switching more stable;

9. Patent no slide specimen cup, does not generate any distortion or damage to specimen,

10. Embedded control, PC machine full process monitoring, intelligent testing process



Standards compliant

ASTM E96ASTM D1653TAPPI T464ISO 2528DIN 53122-1JIS Z0208YBB00092003


Technical data & Introduction:

Description

Parameter  VPT-8-030D

Measuring Range

0.110,000g/ m2•24h

Testing Accuracy

0.01g/m2•24h

Quality precision

0.0001g

Weighing Range

210g  (420g,510g optional)

Testing Mode

3 cavities independent data

Sample Quantity

3

Balance Quantity

1

Temperature Coefficient

1/100000 g/ (10ppm g/)

Temperature Range

10--55℃

Temperature Accuracy

±0.1

Balance constant temperature

No

Humidity Range

5%50%RHautomatic control

Humidity Accuracy

±1%RH

Wind Speed

0.5-2.5m/sothers are optional

Test Area

33cm2(others can be customized)

Thickness

0--3mmgreater thickness fixture customization

Power

AC220V±10Hz

Mainframe Size

760(L)×520(B)×520(H)mm

Mainframe Net Weight

40Kg

System standard configuration:



No.

Description

Quantity

Unit

Specifications

1

Testing host

1

Set

VPT-8 / 030D / 060D / 0120D types, consisting of: quality sensing systems, environmental control systems, permeable cup rotary units, communication systems, and display and control systems.

2

Air Dryer

1

Set

ADH-20LDesiccant free replacement type

3

Professional Testing Software

1

Set

1 Operating System Requirements: Windows 2000 or XP or more;

2 Hardware Requirements: Memory 1G, hard disk more than 80G.

4

Permeable Cup

3

Pc

33cm2 standard permeable cup

5

Communication Cable

1

Pc

Standard RS232 communication cable, 1.5m long

6

Circle Sample Cutter

1

Set

33cm2 sampler suitable for mounting the sample

7

Calibration Weights

1

Pc

100g or200g (inside calibrationno calibration weights)

8

USB Converter Cable

1

Pc

USB1.1 extension cable, length 1m.

9

Computer







Optional

Gas source; Distilled water
