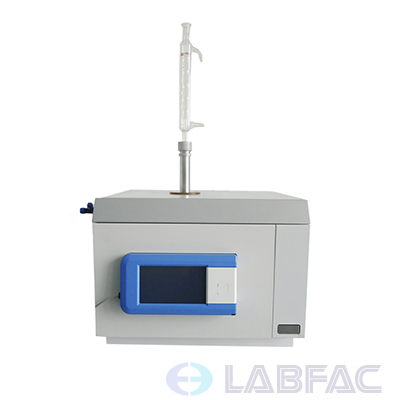

Ultrasonic-microwave Cooperative Extractor/Reactor

Ultrasonic-microwave Cooperative Extractor/Reactor

  • Model: MW-ER-01
  • Power source: 220V±10%, 50Hz
  • Input power: 1360W
  • Furnace chamber volume: 27L
  • Product description: Ultrasonic-microwave Cooperative Extractor/Reactor
  • INQUIRY

Capability Feature:

 A multiuse instrument: three action modes including ultrasonic, microwave and cooperative mode are provided in a real multi-use instrument; best choice for the methods and mechanism research of chemical reaction, chemical synthesis, material preparation, chemical sample pretreatment, etc.

Efficient ultrasonic oscillations: ultrasonic oscillations energy directly act on sample reactor, high acoustic vibration efficiency, low energy consumption, low noise; design of acoustic vibration and wireless, more convenient to put in and take out sample reactor.

 A large treatment capacity: up to 500mL, greatly increase analysis sensitivity; meanwhile, reactor of different shape and volume can be made according to user's needs;

 Operation is intuitionistic and convenient: microwave power and action time are adjustable, ultrasonic and microwave action mode and its degree may combine and set freely. Reaction condition and temperature are real-time monitored;

 Multiple power control mode: time control, temperature control and firm power control make it possible for the operator to choose according to different sample system, analysis task and reaction type;

 Condition of low temperature and normal pressure: reduces the destruction of the sample’s organic structure;

  Safe and reliable: condition of low temperature and normal pressure, no need to process or buy reactor made by special material, the operation will be safer. Direct ultrasonic vibration has a higher efficiency and lower noise. Microwave leakage is less than 0.3mW/cm2 (national standard is 5 mW/cm2);

  Wide application: widely used in sample pretreatment of organic, inorganic and biology analysis. Especially as a new reactor, it can widely used in university or scientific research unit for them to carry out many significative research operations about chemical reaction, organic synthesis, sample digestion or extraction;

 Unique patent technology: 3 patent technology is used for the instrument (ZL 2004 2 0114391.1; ZL 2004 2 0014392.6; ZL 2004 0114393.0)



Technical Parameter

 A multiuse instrument: 3 different modes of action include direct ultrasonic, opening microwave and cooperative mode

Microwave power: 10-800W (adjustable); microwave frequency: 2450MHz

Ultrasonic power/ frequency: 50W/40KHz

 Microwave action mode: nonburst continuous microwave heating

 Ultrasonic action mode: small power ultrasonic transducer directly connect to reactor, low noise,

acoustic vibration (energy) efficiency close to 100%

Microwave power control mode: time control, temperature control and constant power control

Temperature control: non-contact infrared temperature measurement, in the range of room temperature to 120℃(±1℃).

Program control: 9 programs can be set. Each program can be set 9 steps, each step may preinstall parameters such as time (1-999s), microwave power, working temperature, action mode control and ultrasonic (on/off).All the parameters are saved by computer, set, modified and called when needed.

Reactor monitor: real-time video monitor sample reaction state by 4” LCD

Reactor volume: 100mL, 250mL, 500mL (reactor of special specification can be made according to user’s needs)

Power source: 220V±10%, 50Hz

Input power: 1360W

Furnace chamber volume: 27L

Exterior size: 430mm×512mm×510mm

Weight: 25Kg
