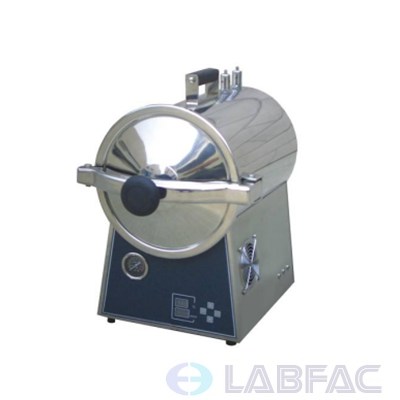

Table Top Steam Sterilizer

Table Top Steam Sterilizer (Fully Automatic Microcomputer Type )

Model: BAC-TM-XA20D（250B20）/XA24D（250B25）
For 4~6 minutes rapidly sterilizing
Exhaust the cool air automatically
Safe protection of water lacking
Product description: Table Top Steam Sterilizer (Fully Automatic Microcomputer Type )
INQUIRY

Characteristics:

1. For 4~6 minutes rapidly sterilizing.

2. Digital display of working status, touch type key.

3.With 3 fixed cycles of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.

4. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

5. Exhaust the cool air automatically.

6. Safe protection of water lacking.

7. Door safety lock system.

8. With three stainless steel sterilizing plates.

9. The chamber of the sterilizer is made of stainless steel.

10. Automatically shut off with beep reminding after sterilization.

11. With drying function.

Technical data:

Model Technical Data	BAC-TM-XA20D（250B20）	BAC-TM-XA24D（250B25）
Sterilizing chamber volume	20L（φ250×420 mm）	24L（φ250×520 mm）
Maximum working pressure	0.22Mpa
Maximum working temperature	134℃
Adjustment of temperature	105-134℃
Timer	0-99min
Chamber temperature equal	≤ ± 1℃
Source power	1.5KW / AC220V 50Hz
Sterilizing plate	340×200×30 mm (3 piece)	400×200×30 mm (3 piece)
Dimension	480×480×384 mm	580×480×384 mm
Package dimension	700×580×500 mm	800×580×500 mm
G. W/N.W	43/40 kg	50/45 kg
