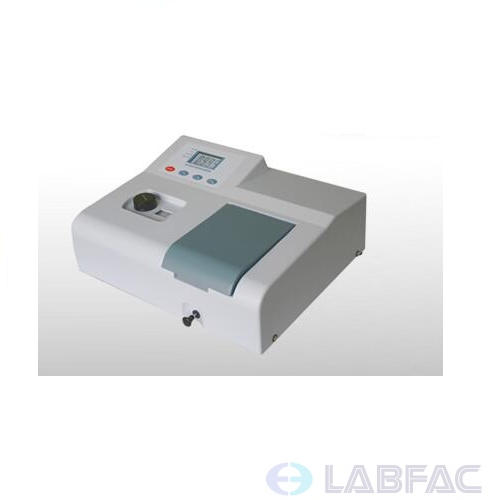

 Visible spectrophotometer

Visible spectrophotometer

  • Wavelength range:350-1020 nm
  • Wavelength accuracy:+/- 3 nm
  • Wavelength repeatability:≤1nm
  • Product description: This product is an economic analysis instruments, with RS232 output. Excellent photometric precision instruments higher than the same file. Widely used in medical testing, food, petrochemical industry
  • INQUIRY

Description:

This product is an economic analysis instruments, with RS232 output. Excellent photometric precision instruments higher than the same file. Widely used in medical testing, food, petrochemical industry, environmental protection and monitoring, and other fields.


Features:

l RS232C interface is optional

l 100mm colorimetric stand (suitable for power plants, waterworks and sugar refiner, etc)

l Digital display the measuring value;

l Auto light door and zero setting.

l The instrument adopts imported tungsten lamp, ensure its service life.


Technical Parameters:

Optical system:

Czerny-turner CT grating monochromator, 1200/mm

Wavelength range:

350-1020 nm

Wavelength accuracy:

+/- 3 nm

Wavelength repeatability:

≤1nm

Measurement range:

0-199.0%T, 0-1.999A, 0-1999C

Photometric accuracy:

+/- 1.0%T

Photometric repeatability:

0.5%T

Spectral bandwidth:

6 nm

Measuring optical path:

100 mm

Stray light:

<= 1.0%T (340 nm

Stability:

<= 0.004 A/h500 nm preheat 1 hour

Display modes:

4 LCD

Basic Measurement:

T,A

Data output (print):

RS232C

Light source:

6V10W

Operating voltage:

220V/110VAC,50-60Hz

Weight:

8kg

Accessories:

Model

ST-VS-721

Host

Standard accessories

Power line

Standard accessories

Instruction manual

Standard accessories

Certification

Standard accessories

Packing list

Standard accessories

Warranty card

Standard accessories

Glass cuvette1CM

4Pcs

Comparator Block5CM

Standard accessories

Printer

Optional

2cm,3cm,5cm cuvette

Optional

Tungsten lamp 6V,10W

Optional

RS-232PortConnecting line

Optional
