Application

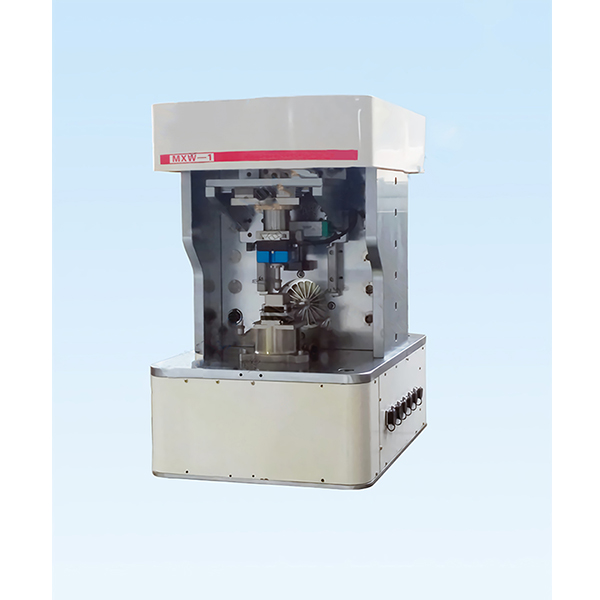

It is mainly used to test and evaluate the tribological properties of materials or surface coatings. The tester is used to simulate the rotation and linear reciprocating motion under a certain test force. It is tested by controlling and changing the test force, speed, frequency, stroke, time, friction partner material, surface roughness, hardness and other parameters to evaluate the comprehensive performance of the material or surface coating. It can dynamically detect friction, test force and temperature conditions, and draw all parameter curves in real time. It has over-preset shutdown or alarm protection for main parameters.
2. Technical parameters
1. Maximum test force: 500N
2. Speed range: 1-2000 rpm
3. Frequency range: 1-80Hz
4. Maximum reciprocating friction: 100N
5. Maximum rotating torque: 4.7Nm
6. Reciprocating displacement range: ± 6mm
7. Reciprocating friction forms: ball-disk, pin-disk and pillar tile
8. Rotary friction type: ball-disk, pin-disk and end face
9. Temperature: room temperature -800 ° C
