Nitrate Concentration Meter

Nitrate Concentration Meter

  • Model: ELE-523-11
  • Product description: Nitrate Concentration Meter
  • INQUIRY

Introduction:

· Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.

· Nitrate electrode range: 1 ~ 5 pNO3 (10-1 ~ 10-5 mol / L).

· Configuration electrode: nitrate ion electrode, reference electrode, temperature electrode and three-in-one combination pH electrode.

· Configuration solution: nitrate ion standard solution, ionic strength regulator, reference electrode solution and pH correction solution.

· There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.

· Automatically recognize 13 kinds of pH buffer solution. User can choose anyone from four series of standard buffer solutions: Europe & USA series, NIST series, CHINA series and Self-defined series

· High purified water and ammonia added purified water pH measuring mode can be set up, especially suitable for electric power and petrochemical industry

· With EH redox potential measuring mode can directly display ORP value which against standard potential of hydrogen electrode.

· There are 10 kinds of common ions can be selected in the ion concentration measuring mode, user also can self-define other ions.

· Can switch 4 kinds of concentration unit: pX, mol/L, mg/L and ppm.

· Meter has the only product serial number.

· Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.

·

 Specifications:

pH

Measuring range

Resolution

Accuracy

Input current

Input impendence

Stability

Temp. compensation range

(-1.999 ~ 19.999) pH

0.1/0.01/0.001 pH

Meter: ±0.002 pH, connect meter with electrode: ±0.01pH

≤1×10-12 A

≥3×1012 Ω

±0.002 pH/3h

(0 to 100) °C (automatic or manual)

mV

Measuring range(mV/ORP/EH)

Resolution

Accuracy

-1999.9mV ~ 0 ~ 1999.9mV



0.1mV

±0.03% FS

Nitrate ion

Measuring range

Display unit

Accuracy

Input Current

input resistance

stability

Temperature compensation range

1 ~ 5pNO3

pNO3, mol/L, mg/L, ppm

± 0.04 pNO3

≤2×10-12 A

≥1×1012 Ω

±0.01 pF /3h

(0 ~ 60) (automatic or manual)

Temperature

Measuring range

Resolution

Accuracy

-10°C~ 110°C

0.1°C

5~ 60°C range: ±0.4°C other range: ±0.8°C

Other Technical Parameters:

Data storage

Storage content



Power

Communication connector

Size and weight

Quality and safety certification

900 groups

Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time

DC9V/300mA

RS232

160 × 190 × 70mm/880g



ISO9001:2000, CE and CMC

Working Condition

Environment temperature

Environmental humidity

IP rating

5 ~ 35 °C(0.01grade) 15 ~ 30 °C(0.001grade)

≤75%

IP54 Dustproof and waterproof

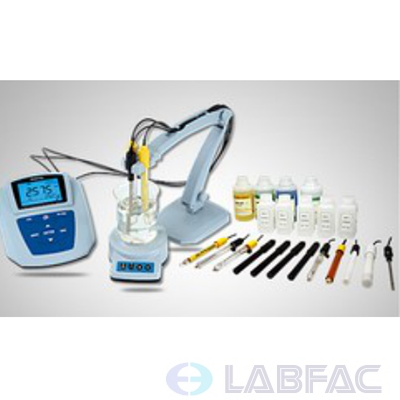

Standard kits:

1. ELE-523-11 Nitrate concentration meter

1set

2. 201T-M plastic pH/ATC three-in-one combination electrode

1pc

3. NO502 nitrate electrode

1pc

4. 6215 Reference electrode

1pc

5. MP500 Temperature electrode

1pc

6. 602 flexible electrode holder

1pc

7. 901 intelligent stirrer

1set

8. B628 stirring bead

3pc

9. Ion strength regulators(30 mL)

1btl

10. Nitrate standard solution (100mL)

2btl

11. Reference electrode solution (30 mL)

1btl

12. pH calibration buffer solution(pH4.00, pH6.86, pH9.18/50ml)

1btl/each

13. 9V power adapter (meter use)

1pc

14. 6V power adapter (stirrer use)

1pc

15.RS232 communication cable

1pc

16.MP523 communication software disk

1pc

17. Operation manual

1copy

18. Brief operation instruction

1copy
