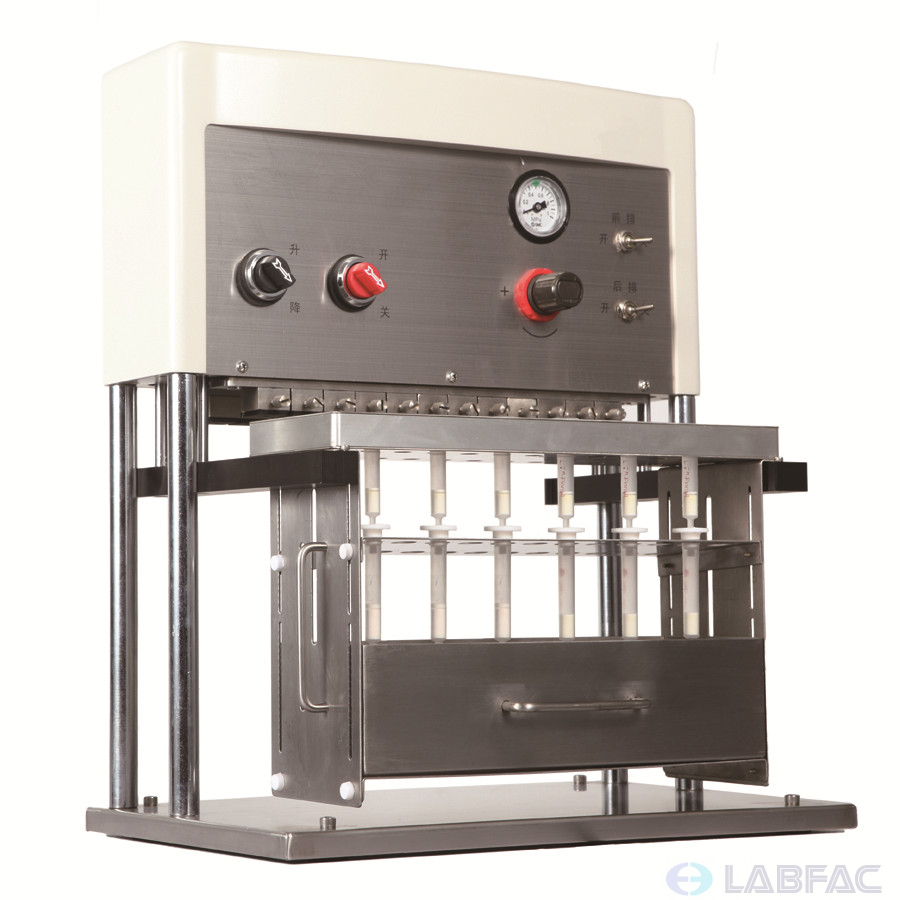

Multi-channel Positive Pressure Solid-Phase Extractor

Multi-channel Positive Pressure Solid-Phase Extractor

  • Model: MW-SE-01
  • Working gas: nitrogen or compressed air
  • Filter: 10μm online air filter
  • Maximum working pressure: 0.5MPa
  • Product description: Multi-channel Positive Pressure Solid-Phase Extractor
  • INQUIRY

Capability Feature:

Handle 24 samples at the same time; provide same pressure for each extraction column.

Unique vernier knob makes flow rate of each extraction column is adjustable and won’t interfere each other.

Extraction column volume includes 1mL, 3mL, 6mL, 10mL and 15mL. Simply changing the strong back of the column can switch among different volume.

Innovative tandem connector for tandem extraction which solves the problem that extraction column volume is insufficient when lots of sorbent or several kinds of sorbent are needed.

Air-powered raising platform controls raise/lower of the rack and supply good gas tightness.

May use compressed air or nitrogen. Equipped with 10μm filter



Technical Parameter:

Extraction column volume: 1mL, 3mL, 6mL, 10mL or 15mL.

Working gas: nitrogen or compressed air.

Filter: 10μm online air filter.

Maximum working pressure: 0.5MPa.

Other: Size, 440x300x530 mm; Weight, 25Kg.
