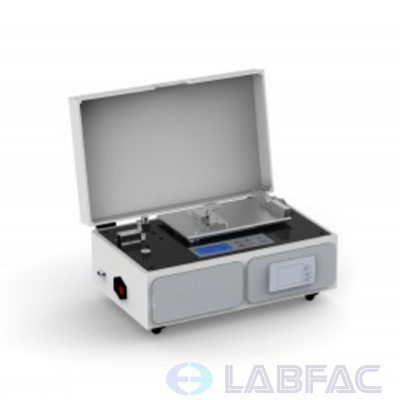

Horizontal Tension/Tensile Strength Tester

Horizontal Tension/Tensile Strength Tester

  • Model: HST-T
  • Embedded intelligent control
  • Using high-precision load cell
  • High-speed sampling for precision measurement
  • Product description: Horizontal Tension/Tensile Strength Tester
  • INQUIRY

Product Description:

Used for the accurate measurement of the tensile properties of the material, tensile strength of the paper, and the paper's tensile energy absorption, etc. It’s suitable for precision test applications.



Standards compliant:

ISO 8295, ASTM D1894, TAPPI T816



Features:

1.  Embedded intelligent control, automation test process;

2.  Using high-precision load cell, measuring accuracy: 0.001N;

3.  High-speed sampling for precision measurement;

4.  No mechanical knob, all-digital systems, digital correction and zeroing

5.  Test host computer software and dual control structure, can also be tested without a computer;

6.  Precision ball screw drive, differential stepping drive, running smoothly, no noise;

7.  Test Data is displayed by LCD, standard RS232 computer communication function;

8.  Tensile testing, tensile strength and energy test;

9.  Professional software support, the interface is beautiful, test report is exquisite;

10.  Group test data, statistical analysis, the embedded data makes test results more accurate;

11.  Ergonomically optimized design of the control panel, easy operation;

12.  In line with GB, ISO, ASTM and other test standards;



Technical Specifications:

Description

Model Parameters

HST-T

Detection object

Paper, film and other light materials

Measuring Range

5N (10N, 20N, 30N optional)

Measuring Accuracy

0.001N

Accuracy Class

0.5%

Maximum Stroke

150mm

Test Speed

1-250mm / min, continuously viable

Sampling Rate

55 times / sec

Computer Software

Yes

Transmission System

Imported precision screw

Computer Software

Yes

Host Size

450 × 270 × 200mm (L × B × H)

Net Weight

20Kg

Power Supply

AC220V 50Hz



Configuration: Host, micro-printer, special software (HST-T), stretching fixture, communication cable.
