Homogenizer

  • Homogenizer
Homogenizer

Homogenizer

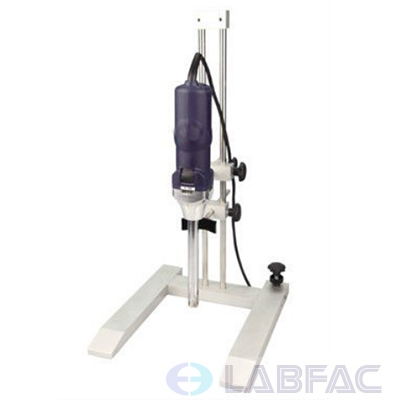

  • Model: DL-500
  • Viscosity up to 10,000 mPas
  • Continuosly adjustable speeds for better results
  • Light-weighted and small-dimensioned for better handling
  • Product description: Homogenizer
  • INQUIRY

Philosophy made simple, so easy to handle. Ability to achieve quality results fast. It has the speed and power to emulsify, suspend, cut-up and disrupt to yield accurate results every time. Full flexibility as hand-held, post or wall mounted, with H-stand or plate-stand support.
Top speed of high 10000-30000 rpm, reduces processing time significantly. Big safety switch for unexpected emergency stop. Smooth motor drive makes working, very safe and comfortable. Additional feature of automatic overload protection increases the life span of the motor. Smooth start also prevents unnecessary spills


Process of dispersing
The material is sucked in to the head axially, then accelerated using the rotor’s high rpm rate, circumferential or peripheral velocity. The centrifugal acceleration between the outer rotor wall and the inner stator wall propels the material through the stator shearing slits.


Quick-change system
Labkits tools consists of only a few parts. One shaft, one axle, one Teflon bearing and one rotor stator. No special tools are needed to dissemble. Only requirement is a simple piece of cloth.



Features of DL-500

- Viscosity up to 10,000 mPas
- Continuosly adjustable speeds for better results
- Light-weighted and small-dimensioned for better handling
- Triple safety of the drive, overload protection and smooth start – against jerky work, safety switch
- 316L steel High quality dispersing tools as standard for better resistance to corrosion
- Quick change system of the dispersing tools for a short changing time between preparations



Specifications:

Power Supply

110-120V/60Hz,220-240V / 50-60 Hz

Motor Type

Universal motor, 500 Watt

Speed Range

10000-30000rpm

Max. Circum. Speed

22.7-36m/sec

Speed Control

Dial knob 7 stage

Working Volume (ml, H2O)

10-40000ml (Optional)

Max. Viscosity

10,000 mPas

Material of Dispersing Shaft

SS 316L stainless steel / PTFE

Weight

1.3 kg

Dimension L x W x H

70mm x 70mm x 255mm

Noise

79 dB(A)

Operating Environment

0-40°C, 85% rel. humidity

Protection Class

IP20


Ordering information:

Cat. No.

P/N

Descriptions

Power supply

850201010000

DL-500 Package 1

DL-500 drive, with dispersing shaft 1 and H-600 stand,10-5000ml

USA plug, 110-120V, 50/60Hz

850201020000

Cn plug, 220-240V, 50/60Hz

850202010000

DL-500 Package 2

DL-500 drive, with dispersing shaft 2 and H-600 stand,10-5000ml

USA plug, 110-120V, 50/60Hz

850202020000

Cn plug, 220-240V, 50/60Hz

* Free of universal converter for UK, Euro plugs

DL-500 Dispersing shaft

Cat. No.

P/N

Descriptions

18900115

DLS-500/1

Dispersing shaft 1 for solid/liquid media, 10-5000ml

18900116

DLS-500/2

Dispersing shaft 2 for W/O or O/W emulsions, 10-5000ml

18900117

DLS-500/5

Dispersing shaft 5mm, for solid/liquid media and volumes from 1-50ml

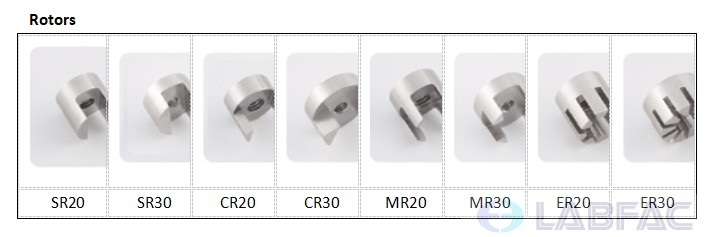

Stator and Rotor of D-500

18900118

S20C Stator

20 coarse ( C )

18900119

S20F Stator

20 fine ( F )

18900120

S30C Stator

30 coarse ( C )

18900121

S30F Stator

30 fine ( F )

18900122

S40C Stator

40 course ( C )

18900123

SR20 Rotor

Standard 20

18900124

SR30 Rotor

Standard 30

18900125

CR20 Rotor

Cutter rotor 20

18900126

CR30 Rotor

Cutter rotor 30

18900127

MR20 Rotor

Mixing rotor 20

18900128

MR30 Rotor

Mixing rotor 30

18900129

ER20 Rotor

Emulsifying rotor 20

18900130

ER30 Rotor

Emulsifying rotor 30


Accessories:

Dispersing shaft 1




SS20CSR20
Cat No. 18900115
- Volume 10-5000 ml
- Max. Circum. Speed 22.7m/sec
- Applications:
Dispersing shaft 1 for solid/liquid media
Ultimate emulsion fitness 1-10μm
Ultimate suspension fitness 10-50μm

Dispersing shaft 2




SS20FER20
Cat No. 18900116
- Volume 10-5000 ml
- Max. Circum. Speed 22.7m/sec
- Applications:
Dispersing shaft 2 for W/O or O/W emulsions
Ultimate emulsion fitness 1-10μm
Ultimate suspension fitness 10-50μm

Dispersing shaft 5mm




SS5CSR5
Cat No. 18900117
- Volume 1-50 ml
- Max. Circum. Speed 5,8m/sec
- Applications:
Dispersing shaft 5mmfor solid/liquid media
Dispersing of tissue decomposition, clinical & medical diagnostics and suspensions. Suitable for centrifuge products and Eppendorf tubes, centrifugal glasses etc.


Stator and Rotor of D-500

18900118

S20C Stator

20 coarse ( C )

18900119

S20F Stator

20 fine ( F )

18900120

S30C Stator

30 coarse ( C )

18900121

S30F Stator

30 fine ( F )

18900122

S40C Stator

40 course ( C )

18900123

SR20 Rotor

Standard 20

18900124

SR30 Rotor

Standard 30

18900125

CR20 Rotor

Cutter rotor 20

18900126

CR30 Rotor

Cutter rotor 30

18900127

MR20 Rotor

Mixing rotor 20

18900128

MR30 Rotor

Mixing rotor 30

18900129

ER20 Rotor

Emulsifying rotor 20

18900130

ER30 Rotor

Emulsifying rotor 30
