Other Instruments

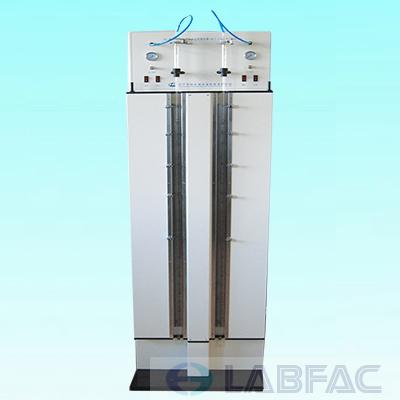

Fluorescent Indicator Absorption Apparatus

Model: PT-HK-1018
Rated Voltage:220V±10% 50Hz
Electric agitator:12V 1500turns/min
UV light source power:40W
Product description: Fluorescent Indicator Absorption Apparatus
INQUIRY

Overview

Fluorescent Indicator Absorption Apparatus is suitable to the ASTM D1319 Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption. It determinates hydrocarbon types over the concentration ranges from 5 to 99 volumes % aromatics, 0.3 to 55 volume % olefins, and 1 to 95 volume % saturates in petroleum fractions that distill below 315°C

Features

1. The vibrator of the instrument adopts electrical machine doing centrifugal vibration, shake regularly and noiseless.

2. The apparatus adopts ultraviolet rays protector, safe and reliable, domestic initiative.

3. The apparatus is equipped with two import absorption columns, can do two groups of experiments, improve work efficiency.

4. The apparatus is equipped with pressure gauge, easy to adjust pressure.

5. The measuring meter ruler and magnetic slider become one with the instrument. Easy to observe the record and difficult to be damaged.

6. Rational design with attractive appearance and easy operation.

Technical Parameters

1.Rated Voltage:220V±10% 50Hz

2.Electric agitator:12V 1500turns/min

3.UV light source power:40W

4.Ultraviolet wavelength:365nm
