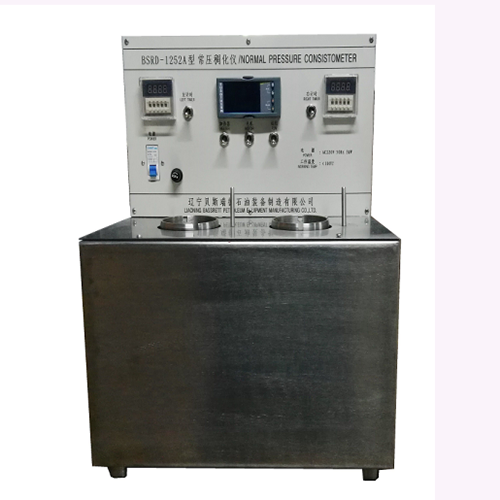

Atmospheric Consistometer

Atmospheric Consistometer

  • Model: BSRD-1252A
  • Product description: Atmospheric Consistometer
  • INQUIRY

Description
The BSRD-1252A Atmospheric Consistometer is designed and manufactured in strict accordance with API standard specification 10. It is used to test the thickening performance of cement slurry samples under normal temperature and pressure conditions. The equipment shell adopts all stainless steel design, long-lasting durability; the instrument adopts the British Eurotherm 32h8 controller, which has high temperature control accuracy, Japan OMRON time relay, stainless steel transmission device, copper slurry cup, and the overall structure and performance of the instrument fully meet the similar American instrument indicators .


Feature
2.1 Using the British Eurotherm 32H8 thermostat, it can use the program to increase temperature, and the temperature control accuracy is high.

2.2 Adopt Japanese OMRON time relay with alarm function.

2.3 Stainless steel rotating mechanism, corrosion resistant.

2.4 Mute geared motor, low noise.


Technical parameters
3.1 Power supply: AC220V (±10%) 50Hz 3kW

3.2 Motor speed: 150±5rpm.

3.3 Digital PID closed loop control, digital display.

3.4 Operating temperature range: room temperature to 100℃

3.5 Temperature control accuracy <±1℃.

3.6 Pulp cup capacity: 465ml×2

3.7 Size: 380mm×380mm×500mm.

3.8.Net weight: 45 Kg
