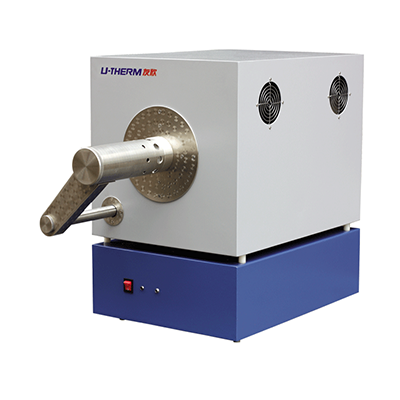

Ash Fusion Tester

Ash Fusion Tester

  • Model Id: YX-HRD
  • Furnace Temperature Range : 0℃~1520℃
  • Resolution : 1℃
  • Sample Quantity : 3 samples each time
  • Product description: Ash Fusion Tester
  • INQUIRY

1. Application area

Suitable for measuring ash Fusion in coal ash for industries such as electric power, coal, commodity inspection, environmental protection , metallurgy , papermaking , chemical industry, collate industry, science & research institution and inspection administration.

2. Technical Data

Furnace Temperature Range :0~1520

Temperature Controlling Accuracy : <5

Resolution :1

Sample Quantity : 3 samples each time

Temperature Rising Speed : Comply with ASTM D 1857-04

Laboratory Atmosphere:Oxidability or weak reducibility

Power Supply: 100 ~260V, 50/60HZ

Maximum Power : ≤ 5KW

Cabinet Dimension :400mm×550mm×600 mm

Weight : 65kgs

3. Features Highlight

1. Temperature reading, controlling and stabilizing controlled by computer automatically. Introduce the technology of CCD photography to collect the graphic of ash cone, which will be automatically stored and printed out. One test could determine 1 ~ 4 samples( include one standard sample)

2. Novel heating element and heat preservation material are adopted to ensure the furnace not to be destroyed and distorted after long time working under a high temperature of1520.

3. Controlling card adopt high precision reference power supply, low temperature drift and high accuracy amplifier, 4.5-bit A/D switching chip, cold-junction compensation, over-temperature protection.

4. According to the real-time graph of ash configuration changing in the heating process to determine the Fusion temperature, including deformation point (DT), softening point (ST), hemisphere temperature (HT) and floating temperature. (FT)

5. The ash graph saved in the computer can be called out at any time for further inspection and analyzing.

6. The results of ash graph could be printed out and the temperature rising curve can be displayed on the screen.

7. Introduce the advanced PCI technology, complying with the latest development in Computer technology. Various instruments could integrate into a synthesized testing instrument, realizing one PC control multi-instrument.

8. Completely support Windows systems; high stability; can link electronic scale and share data in long distance through network.

9. Conform to ASTM D 1857-04.

4. Configuration

Item

Quantity

Unit

High Temperature Oven

1

PC

Ash Fusion Controlling Card

1

PC

Video Card

1

PC

CCD Camera

1

PC

Platinum Rhodium Thermocouple (33cm)

1

PC

Φ80 Silicon Carbon Tube

1

PC

Φ60 Corundum Tube

1

PC

Sample Feeding Handspike

1

PC

Corundum Boat

1

PC

Ash Mould

1

Set

Pyramid Tray

10

PC

Signal Cable

2

PC

Standard Ash

1

Bottle

Dextrin

1

Bottle

Graphite

500

Gram

Wrench

1

PC

Screwdriver

1

Set

Socket Board

1

Set

Application Software for Windows System

1

CD

Instruction Manual

1

PC
