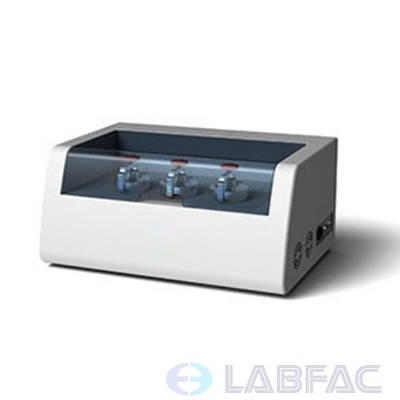

Air Permeability Tester

Product function:

It is applied to various gas permeation rate detection of O₂, CO₂, N₂ and air, etc. Also in plastic film, composite membrane, High-barrier materials, sheet, metal foil, rubber, etc.

Operating principle:

Using the principle design of differential pressure method, put treated sample in the middle of upper and bottom chamber in advance. Pressure tightly and seal, pick up the suction to the whole system, after reaching the required vacuum degree, close bottom chamber, fill with certain test gas to high pressure chamber, and adjust upper chamber pressure, keep on two sides of the sample forming constant air pressure gradient difference, the gas is under the action of differential pressure gradient, permeating from high-pressure side (upper chamber) to vacuum side (bottom chamber). Accurately measure vacuum chamber (bottom chamber) intensity of pressure variation, calculate various barrier property parameters of test sample. Fully conform to the standard ASTM D1434.

Application characteristic

High speed vacuum ability, to reduce the vacuum time, and accelerate the degassing, reduce test error;

Short test time, high efficiency;

Could extend to test bottle, bag;

Less gas consumption, gas bottle can be used continuously for one month;

Can measure any gas, including toxic gases, no gas leak, and the gas consumption up to six months a bottle;

Automatically adjust the test pressure; to adapt to the a variety of pressure requirements, can be as low as 2kPa;

Save functions when power failure

A whole-process monitor, automatic recording, adjustable sampling rate,

Reappear in the whole test process again, strong graph curve function, convenient for comparison test and analysis;

Automatic testing: Set the test parameters, test automatically proceeds after starting, automatically judge the test if ends and save the test result.

There is general data base system in host software, data could be exported, could store the data, inquire, print, etc. Through the analysis of historical data, it’s easy to grasp the history dynamic of the products.

Product feature

Pure semiconductor temperature control, automatically control warming and cooling, Temperature range is wider and more accurate, parallel work, higher reliability.

Apply base line technology; remove the system error, test result is more accurate.

Be of accurate pressure control ability, maintaining constant pressure difference.

International top vacuum sensors, high-quality components, precision piping system to ensure the stability and reliability of the instrument operation,

Embedded system control, and all are computer control.

Meeting Standards

Compatible with the standard of various tests: ASTM D1434、ISO 2556、ISO 15105-1、JIS K7126-A、YBB 00082003
