4 Heating Zones Reflow Oven

Product Dimension:

Product Features:

Unique, advanced and long-life heating system:

1. High efficiency and energy-save Swedish 110V nickel chromium heating pipe is used in heating system (replacement within three year), radiation power peak wavelength 4UM, equipped with surface reflector, high thermal efficiency, rapid heating speed, specially-made strong hot air cycle structure system, making PCB and components heating equally, completely eliminate the shadow effect.

2. Adopt imported high-current solid-state relay non-contact output, safe and reliable, combined with the temperature controller which has unique fuzzy control function, always monitoring the outside temperature and heat value changes, control heating components with minimize pulse , fast response to ensure temperature control accuracy ±1℃, the error of inside temperature distribution ±2℃. Temperature distribution in the length direction conform to IPC standards.

3. The intelligent micro-computer precision controller, through intelligent operation of PID, control heating automatically, increasing blurry controlling function, overshoot and suppress function can respond to outside thermal changing with furthest speed ,plus the inside controller could make temperature more stable.

4. Heating pipe modularization design, easy to repair and assembly.

5. Imported Italian high temperature and high speed motor, stable operation,small vibration, small noise.

6. Upper oven body can open wholly to make the inside clean.

7. With temperature tolerance, fault diagnosis, sound and light alarm, power abundant, rapid heating, from room temperature to constant temperature about 15 minutes.

8. Dedicated SSR radiator, radiating efficiency is significantly improved, effectively extend its service life.

9. All adopt imported components to ensure the entire system high reliability.

Reliable and smooth transmission system

1. Transmission system adopts Taiwan STK stepless speed motor, adjustable belt speed stepless speed governor, smoothly operating matched up with 1: 150 STK turbine reducer, speed 200-2000mm / min, stepless adjustable, and also accurate digital Line speed indication.

2. Adopt independent roller structure and support, combined with supporting stainless steel mesh belt, running smoothly, precise speed up to ±20mm/min;

3. Special stainless steel “乙” type mesh belt, durable and wearable, lasting non-deformation.

Stable and reliable electrical control system

1. Delay switch protection function, evenly cooling after the shutdown, to prevent transmission parts deformation caused by uneven cooling.

2. Power off protection function, ensuring the PCB board’s normal output without power damage.

Product Details:

1. 8pcs of controlling meters

2. Wiring

3. Structure

4. Radiating ports

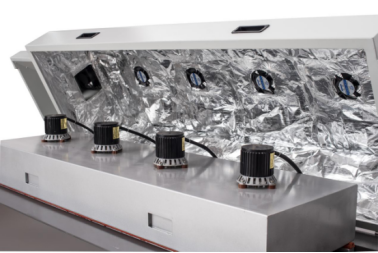

5. Italian high-temperature high-speed motor

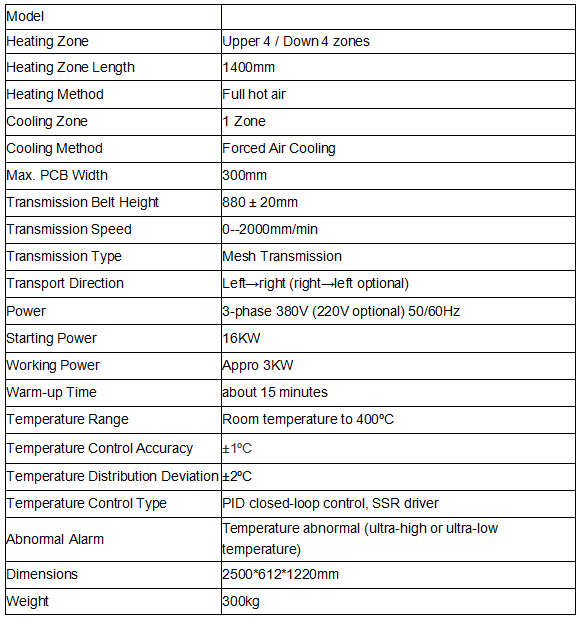

Products Specifications:
